Introduction to ABAP

#

Essential Transaction Codes

#

What is a Transaction Code?

#

A Transaction Code (or T-Code) is a text shortcut that allows you to access a SAP feature directly without navigating through menus. It’s the equivalent of a shell command in a terminal.

Entering a Transaction Code

#

To use a T-Code:

• Click in the command field (top left)
• Type the transaction code
• Press Enter

┌──────────────────────────────────┐
│ /nSE80                           │  ← Command field
└──────────────────────────────────┘

Advanced Syntax

#

Transaction Codes for Development

#

Here are the must-know T-Codes for starting in ABAP:

Keyboard Shortcuts

#

Why Master Shortcuts?

#

Keyboard shortcuts can multiply your development speed by 3. Instead of navigating menus with the mouse, you keep your hands on the keyboard and stay focused on the code.

Essential Shortcuts

#

Transport Order (TO) and Creation – SE10

#

Objectives

#

• Understand the role of a TRANSPORT ORDER in SAP
• Know how to create a TO from transaction SE10
• Identify the structure of a TRANSPORT ORDER (TASKS, OBJECTS)
• Remember best practices for using TO

The goal is to master TO to transport, organize and track your developments between SAP environments.

Definition

#

A TRANSPORT ORDER (TO) is a container that groups development or configuration objects in SAP.

It allows you to transport these objects from one ENVIRONMENT to another.

Visual Schema

DEV (Development) ──> QUAL (Testing/Validation) ──> PROD (Production)

You put your objects (programs, tables…) in a box (TO), then transport it from one house (DEV) to another (QUAL/PROD). The icon to transport a TO is a truck.

A released TO is final and cannot be modified anymore.

Why Create a TO?

#

Creating a TO allows you to:

• Track your developments
• Save your modifications
• Transport your creations to other SAP systems

Think of the TO as a box containing your objects: everything in that box follows the same path.

Types of Transport Orders

#

Workbench = code → DEV

Customizing = configuration → business parameters.

Creating a TO from Transaction SE10

#

Steps:

1. Enter /nSE10 then validate

2. Click on Create (F6)

3. Choose the type of TO → Workbench or Customizing → Validate

4. Give a Brief Description and Save

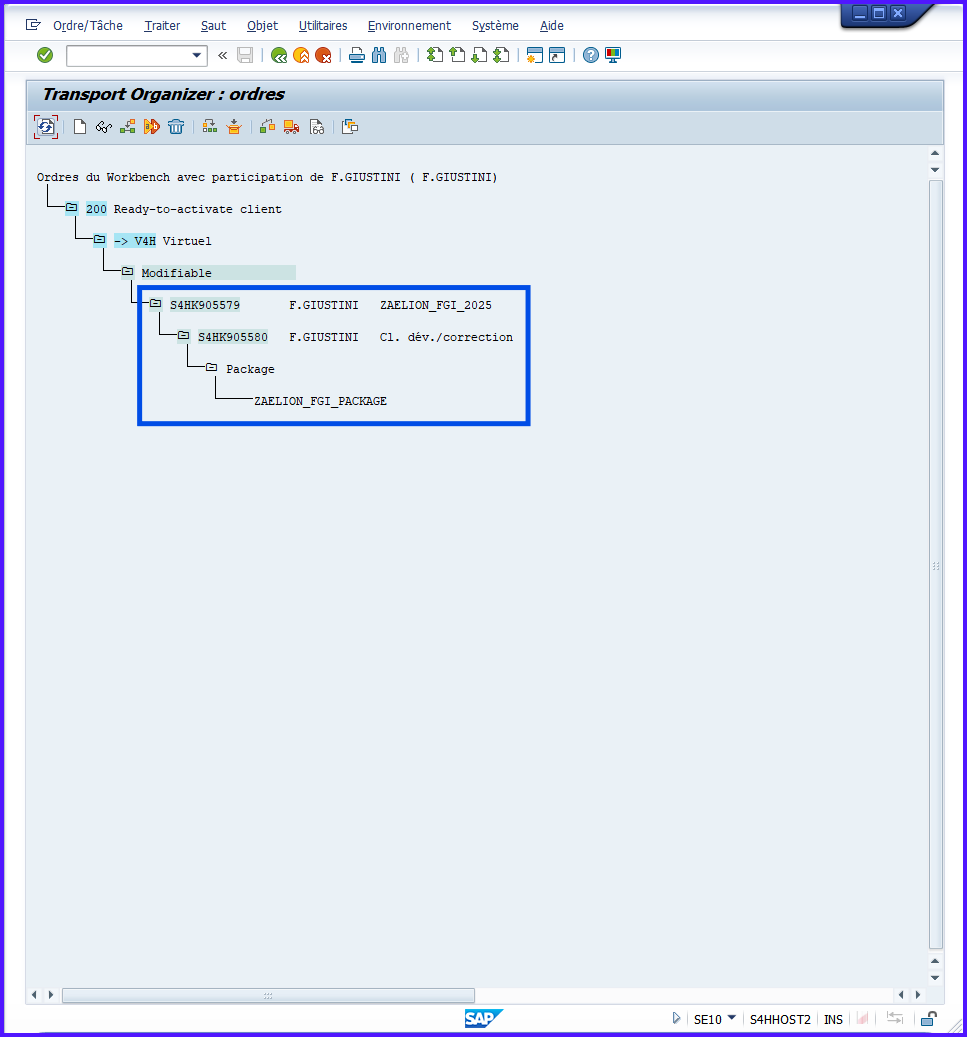

5. View the TO and the task automatically created for the current user

Simplified schema of the TO and its task:

TO (S4HK905579)
  └─ User Task (S4HK905580)
       └─ Objects: Programs, Tables, Includes

A task corresponds to what you modify or create. Each user has their own task in a global TO. In other words, multiple developers can record modifications/creations in the same TO.

Structure of a TO

#

• Transport Request: groups multiple tasks under the same ID
• Task / Work Order: contains objects created/modified by a user

Visualization

Global TO (ID)
├─ Task 1 (User A) → Objects
├─ Task 2 (User B) → Objects

Never mix objects from different projects in the same TO.

Searching for a TO

#

• By ID: filter in SE10
• By Author: filter to see TO created by a user
• Multiple search: combine criteria to find specific TO

These filters allow you to quickly locate your developments and understand their history.

Best Practices

#

The name and structure of the TO are essential for tracking and maintenance.

Practical Exercise

#

1. Create a Workbench TO “ZAELION_TRI_2025” (TRI will be replaced by your trigram (1st letter of first name and 2 letters of last name))
2. View the TO structure and verify the task ID

The release of the TO will be the subject of its own module

Summary

#

• A TO is a container for your SAP objects
• Allows you to transport your developments between environments
• Created via SE10 and links your programs and objects
• Structure: global TO → user tasks → objects
• Follow best practices to avoid errors and confusion

Each TO is a box containing your creations, transported from house to house (DEV → QUAL → PROD) in a secure and traceable way.

Creating a PACKAGE via SE80 or SE21

#

Objectives

#

• Understand the role of a PACKAGE in organizing SAP developments
• Know how to create a PACKAGE via SE80 or SE21
• Understand the difference between local and transportable PACKAGE
• Organize your objects to facilitate maintenance and transport

The objectives aim to master the structuring of ABAP objects to simplify transport, maintenance and collaboration.

Definition

#

A PACKAGE (formerly DEVELOPMENT CLASS) is a logical container that groups ABAP development objects.

The PACKAGE is like a filing cabinet with drawers: each program, table or Include is organized in an identified drawer.

Visualization PACKAGE: ZAELION_TRI_2025 ├─ Program ZTRI_AELION_01 ├─ Include ZTRI_AELION_01_TOP └─ Table ZT_AELION_2025

A PACKAGE facilitates grouping by project or functional module and is essential for transporting objects.

Why Create a PACKAGE?

#

Creating a PACKAGE allows you to:

• Organize developments by theme or project
• Avoid conflicts between similar objects
• Simplify transports via a coherent TO

An object created in $TMP cannot be transported.

Z/Y = client → transportable; $TMP = test → local only.

Creating a PACKAGE with SE80

#

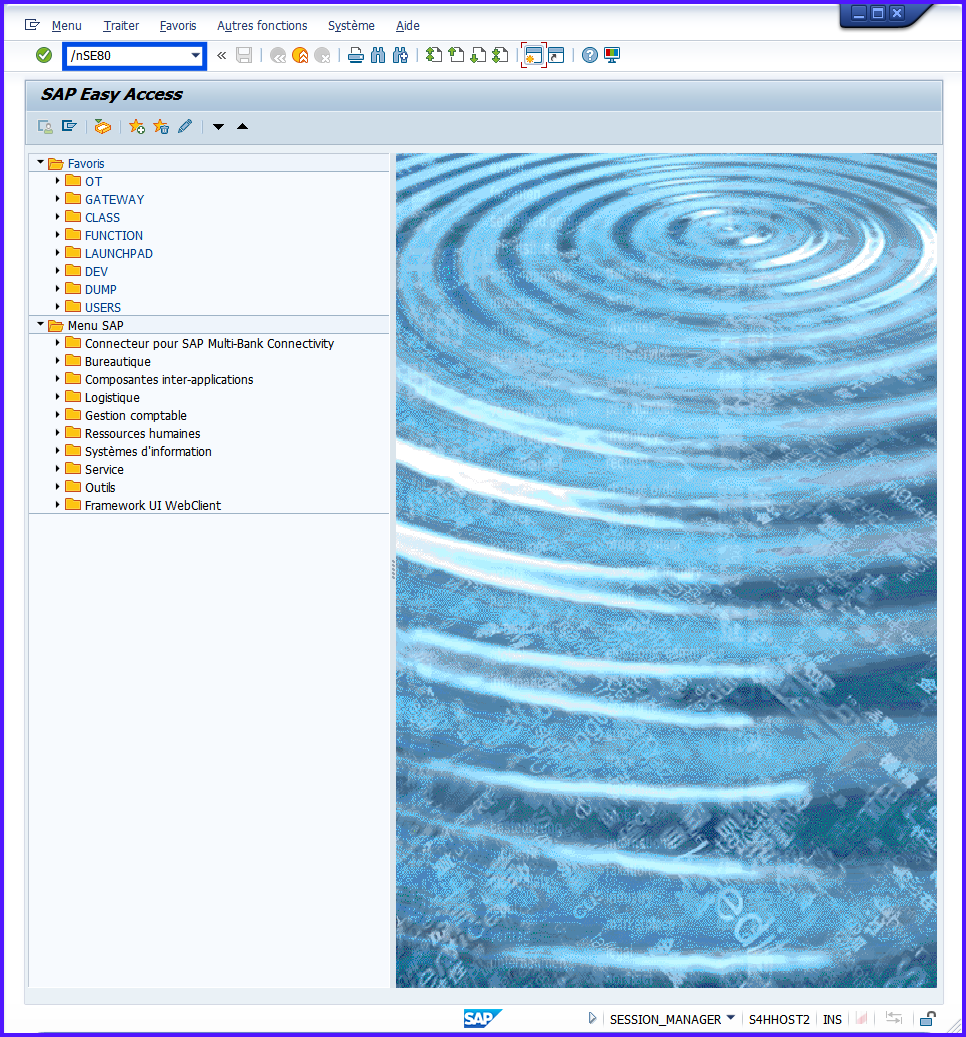

1. Enter /nSE80

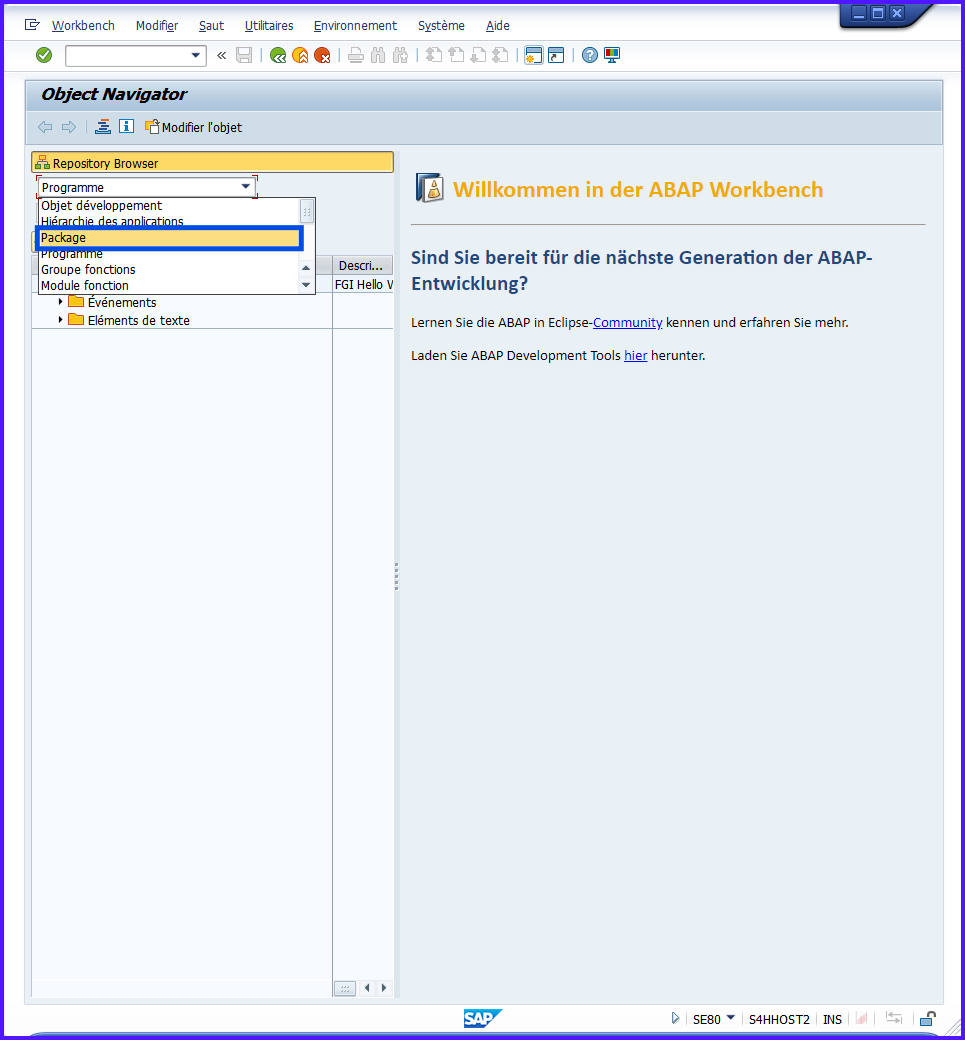

2. In the dropdown list, choose PACKAGE

3. Enter the PACKAGE name (ex. ZAELION_TRI_PACKAGE) → Enter

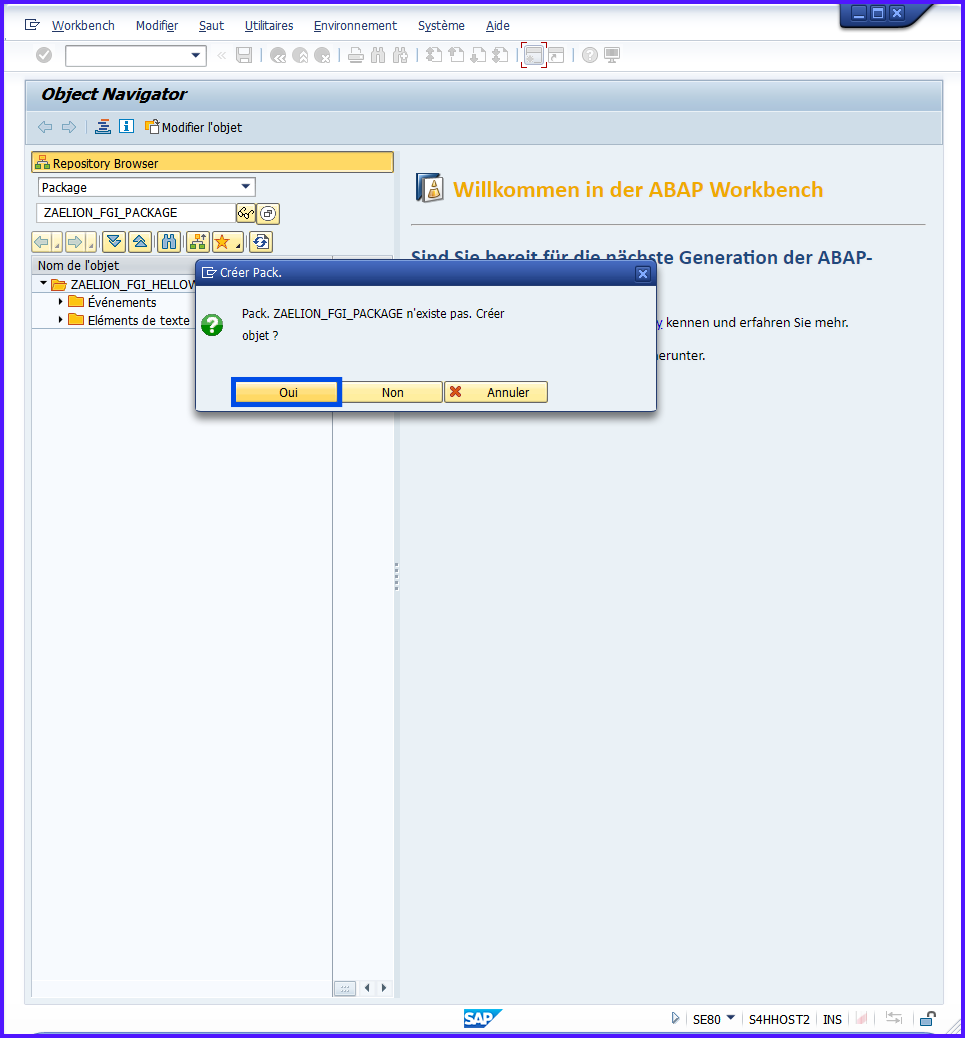

4. Confirm creation via popup

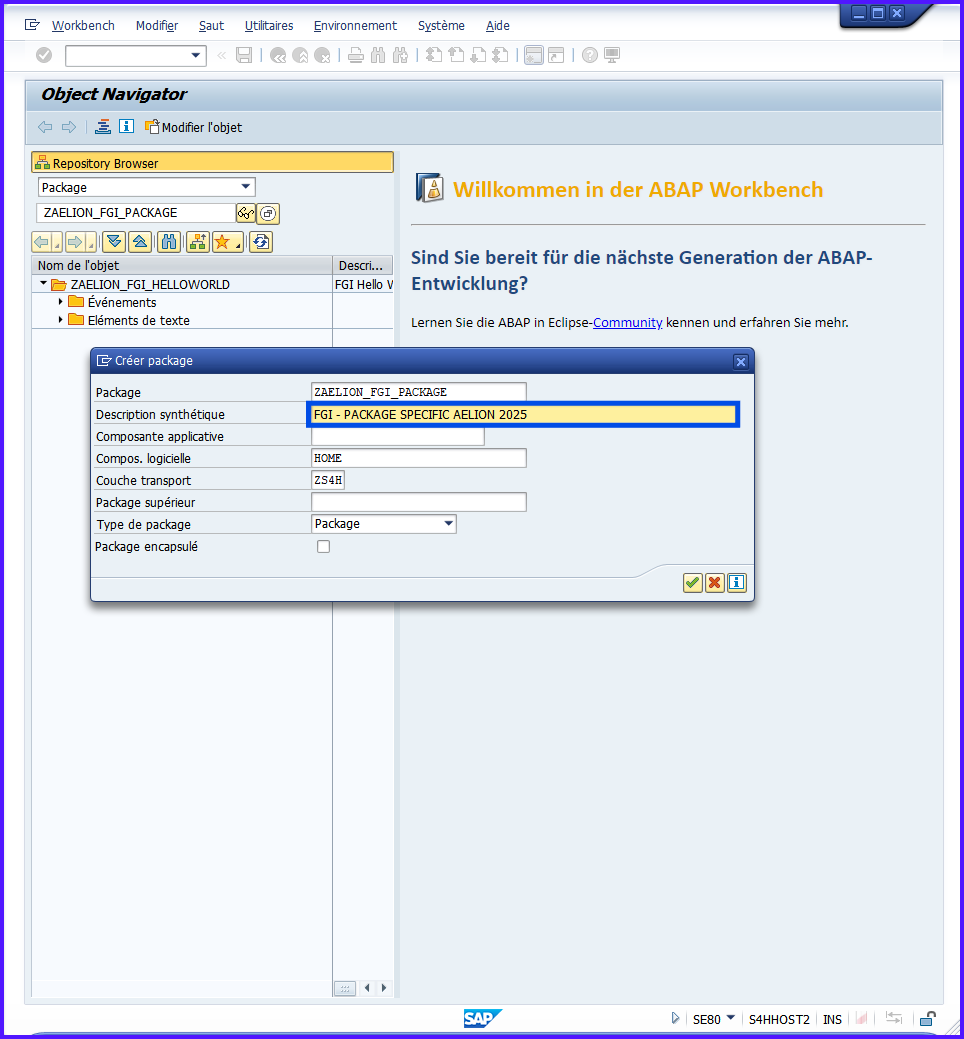

5. Fill in Brief Description and validate

   TRI - PACKAGE SPECIFIC AELION 2025

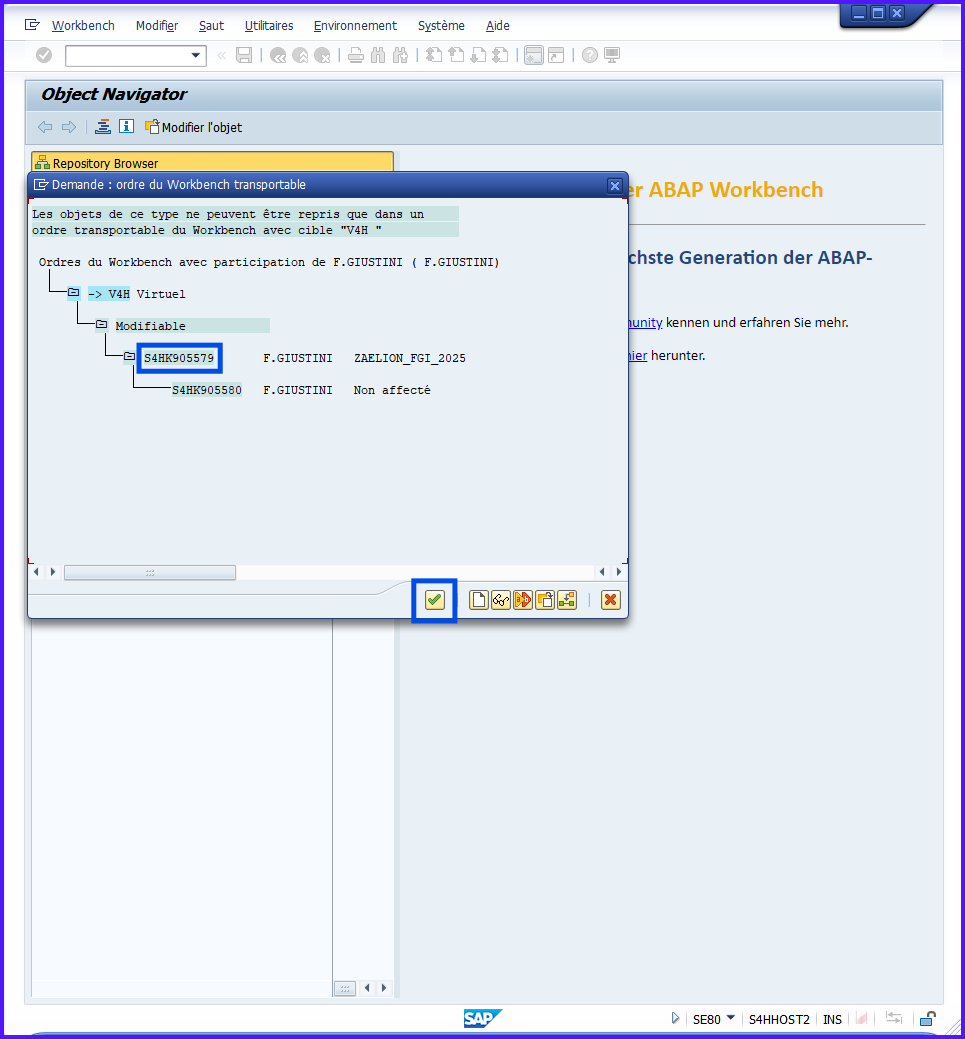

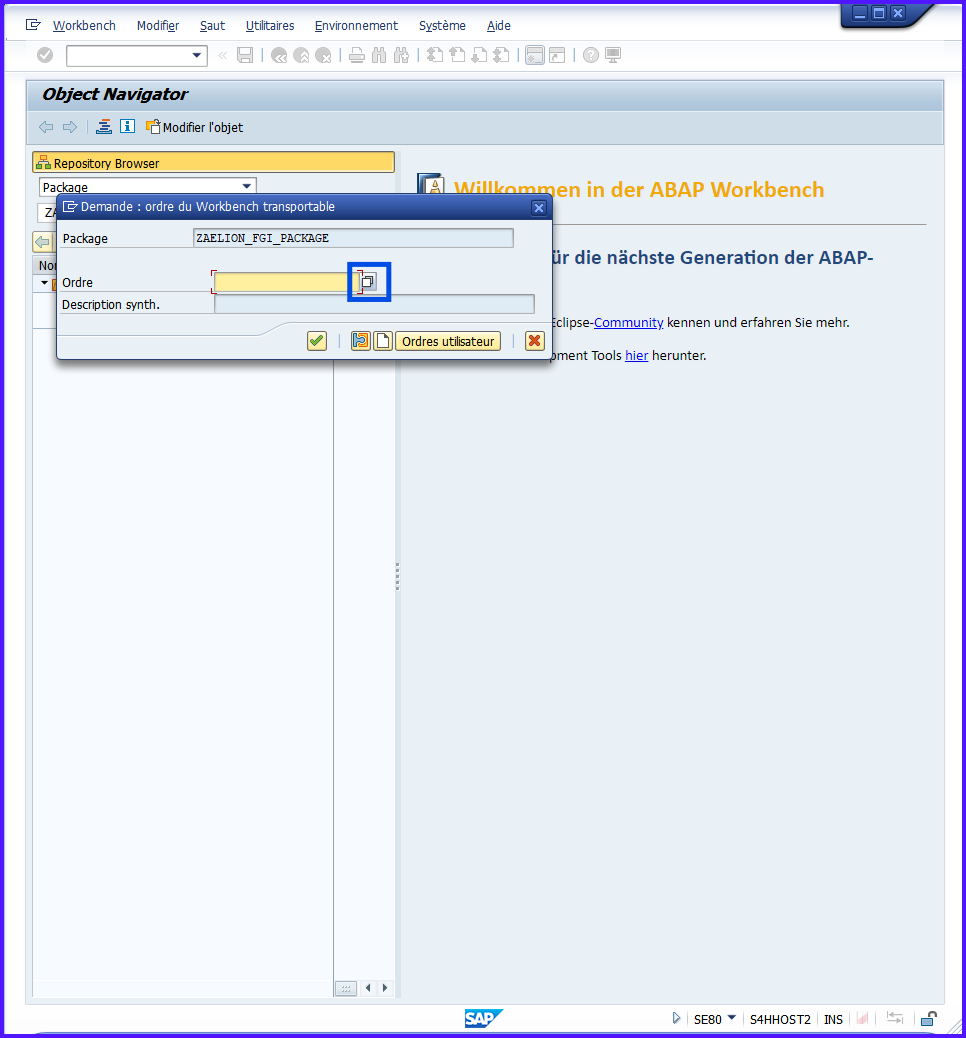

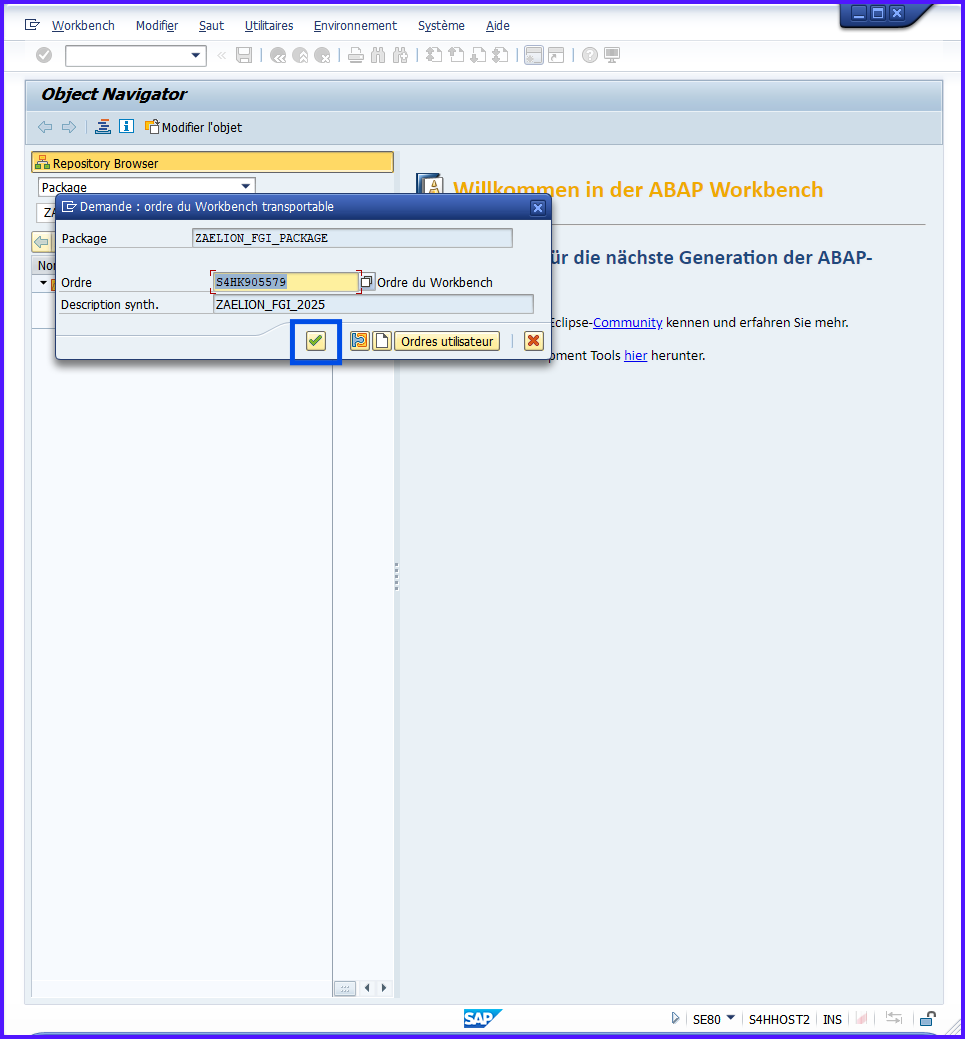

6. Associate your TO





7. Validate







PACKAGE ZAELION_TRI_PACKAGE └─ Associated TO (ex. S4HK905579) └─ Tasks (ex. S4HK905580) └─ Objects

Creating a PACKAGE with SE21

#

1. Enter /nSE21
2. Enter the PACKAGE name → Enter
3. Fill in Title and parent PACKAGE if applicable
4. Save and associate a TO if transportable

SE21 is more direct, SE80 allows you to view the complete object hierarchy.

Best Practices

#

A well-structured PACKAGE reduces errors, facilitates collaboration and maintains clear history.

Practical Exercise

#

1. Create a transportable PACKAGE ZAELION_TRI_PACKAGE
2. Associate your TO

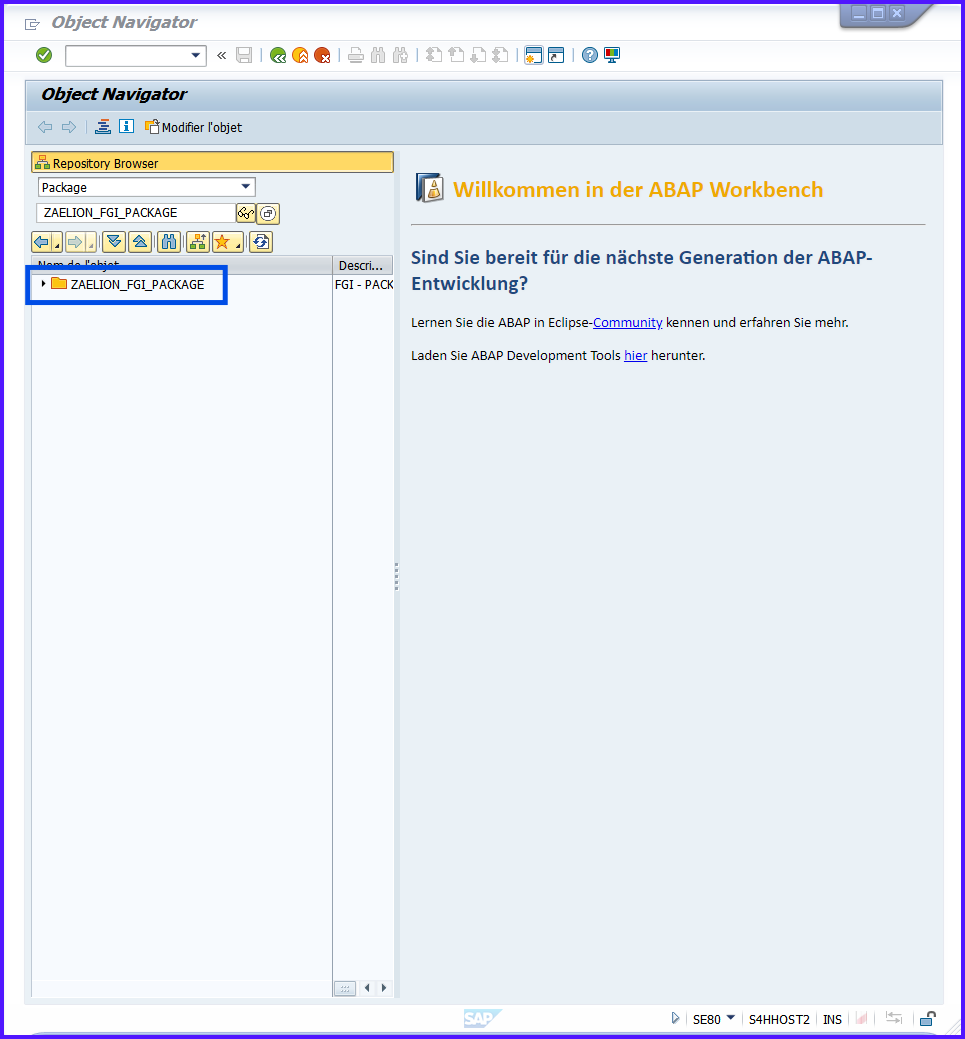

3. Check in SE80 the PACKAGE hierarchy

Summary

#

• The PACKAGE is a logical filing cabinet for grouping ABAP objects
• Allows organizing, maintaining and transporting objects
• Created via SE80 or SE21
• Types: local ($TMP) or transportable (Z/Y)
• Always associate a TO for secure transport

Each PACKAGE is a filing cabinet where each drawer contains your programs and Includes, organized to be easily transported and retrieved.

Creating a Program – SE38 / SE80

#

Objectives

#

• Understand what an ABAP PROGRAM is and its role in SAP
• Create a PROGRAM via SE38 or SE80
• Know the types of PROGRAMS available
• Launch, save and transport an ABAP PROGRAM

The goal is to understand how to structure, create and execute an ABAP PROGRAM in SAP, while respecting organization by PACKAGE and TO.

Definition

#

An ABAP PROGRAM is a set of executable instructions by SAP. It serves to process data, display results or automate actions.

A PROGRAM is like a recipe: each line of code is an instruction to obtain a final result. The PACKAGE is your recipe filing cabinet, and the TO is the box to transport recipes.

• Read a customer table
• Calculate totals, process character strings
• Display a report on screen

Types of Programs

#

The type determines the usage and interface of the PROGRAM.

Creating a Program with SE80

#

1. Enter /nSE80

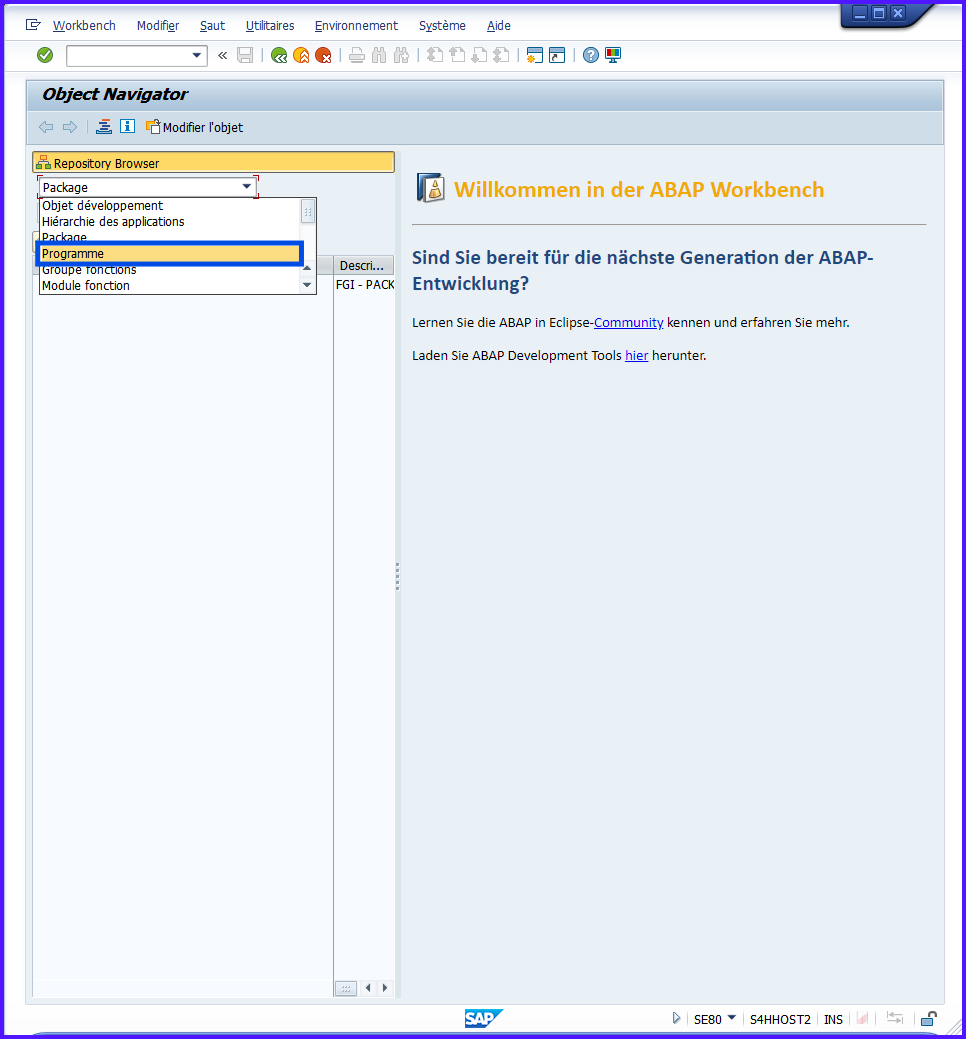

2. Choose Program

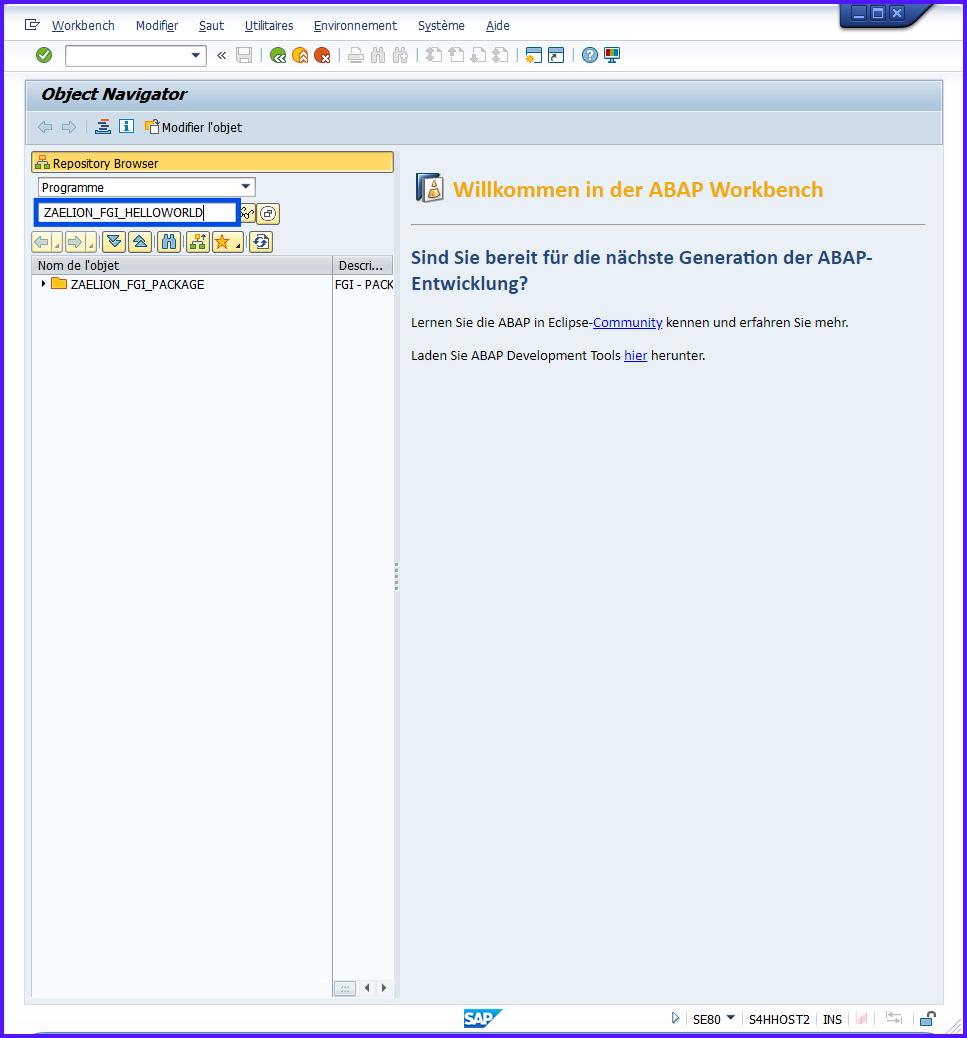

3. Enter the name of the PROGRAM → Enter

   ZAELION_FGI_HELLOWORLD

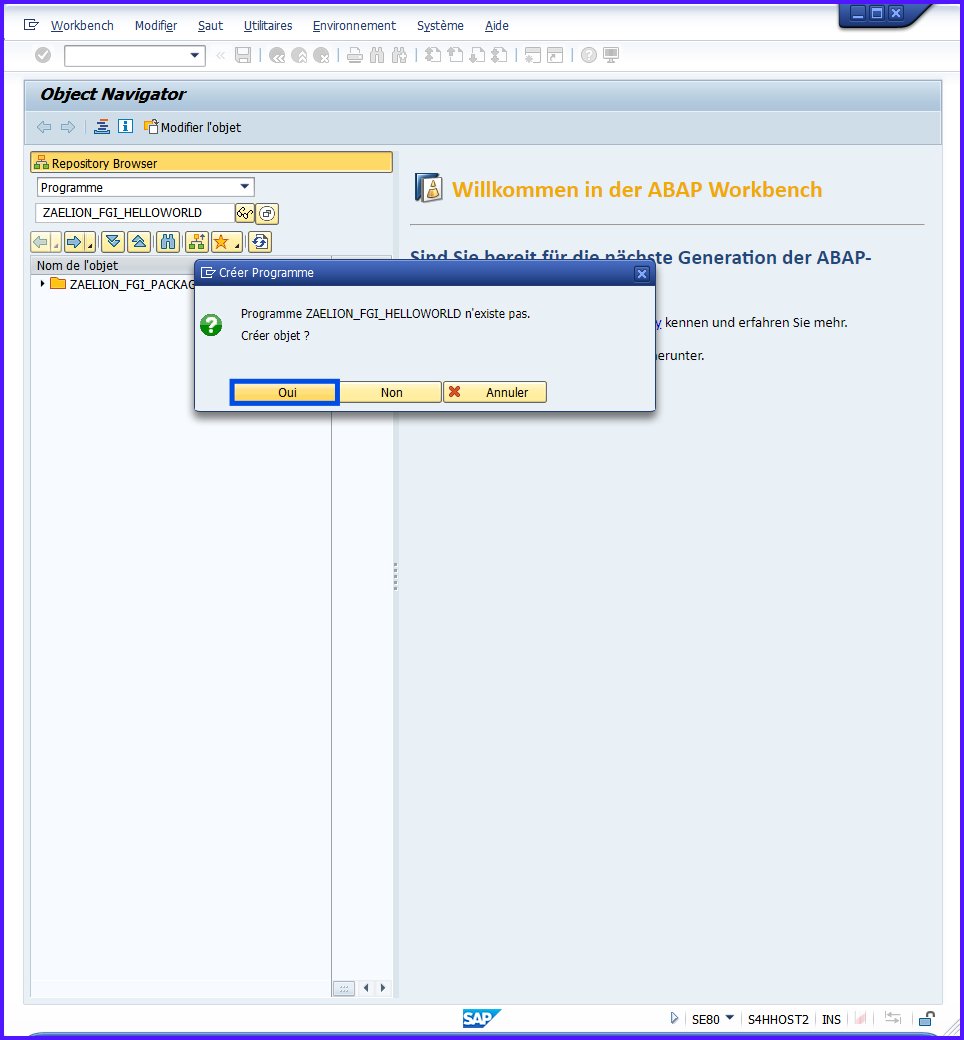

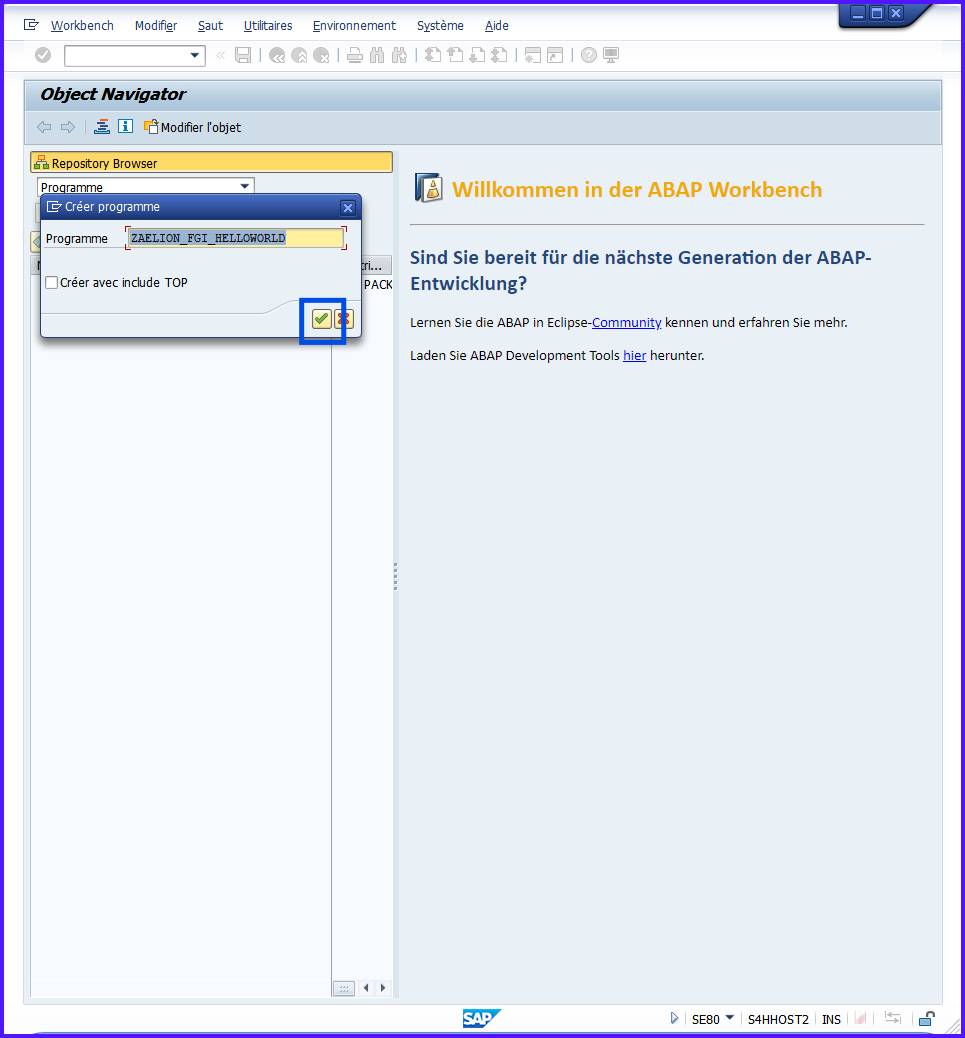

4. Confirm creation via popups

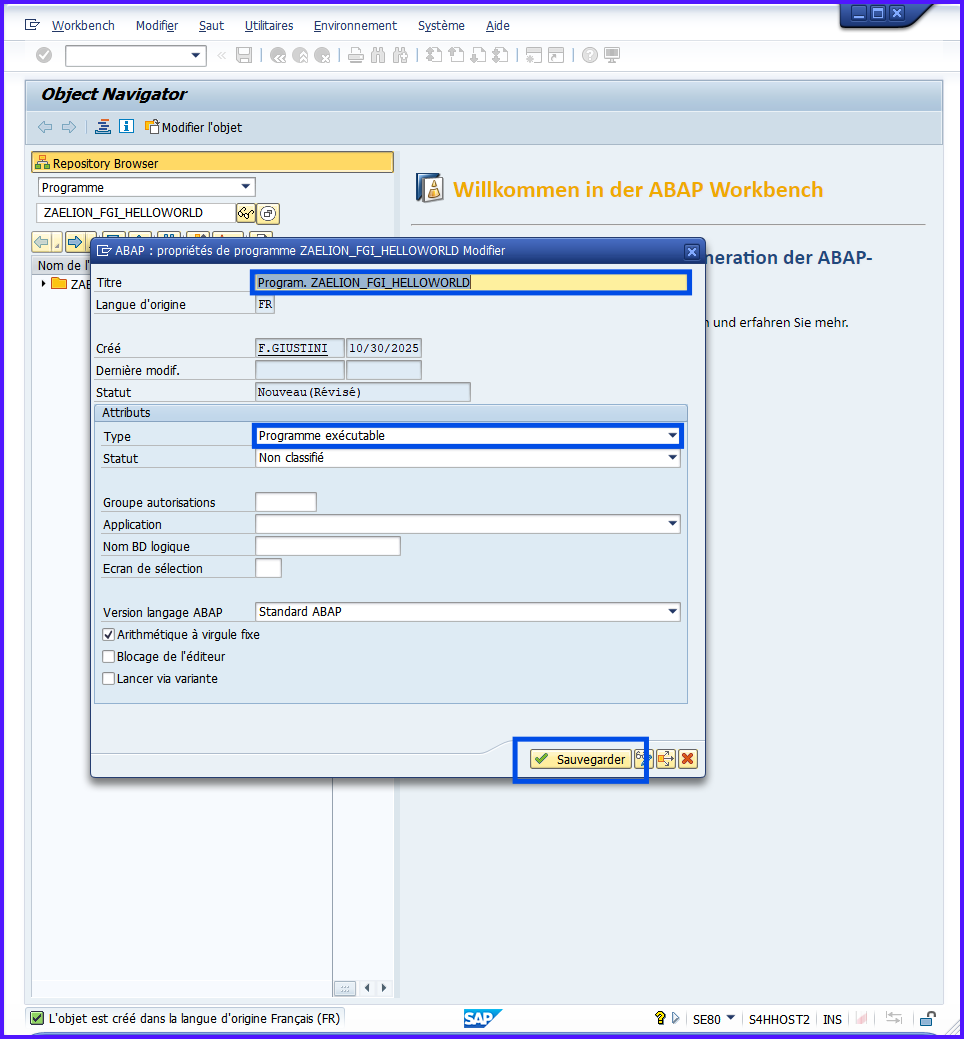

5. Verify Title and Type Executable Program and Save

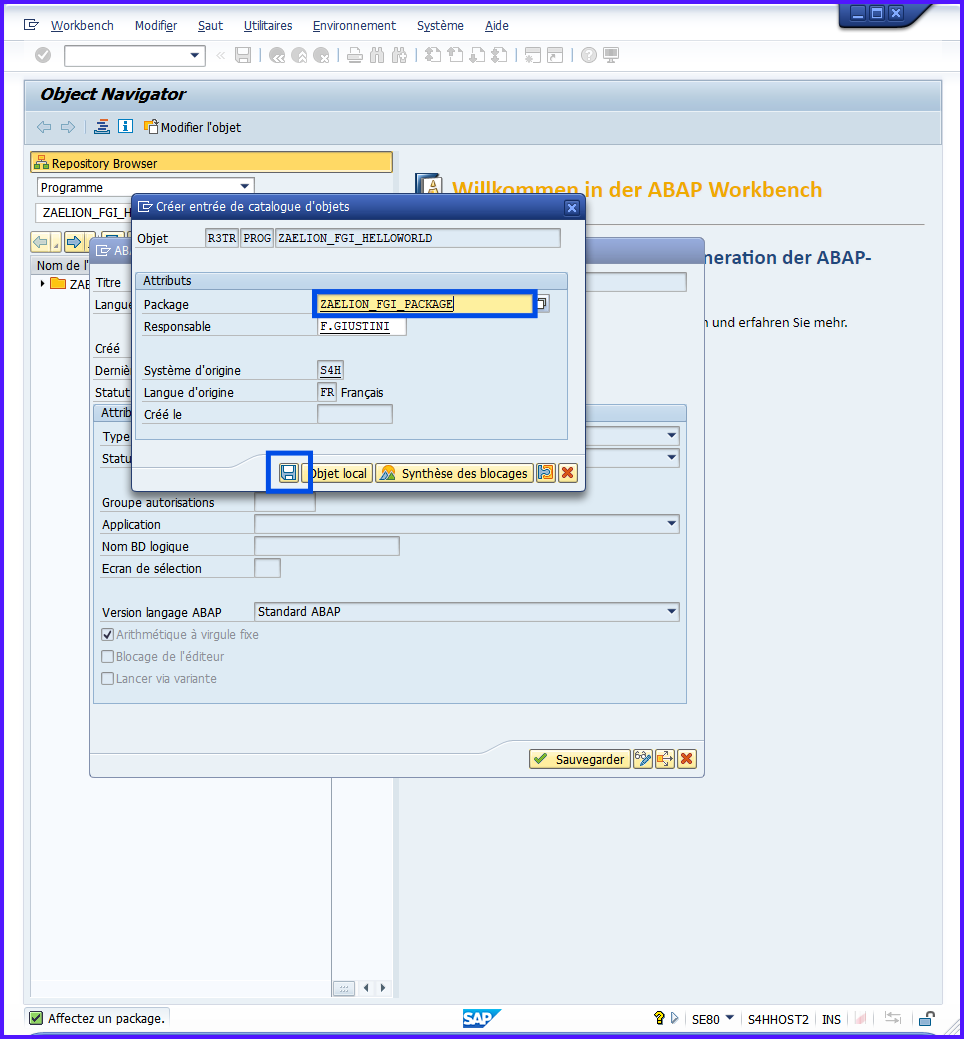

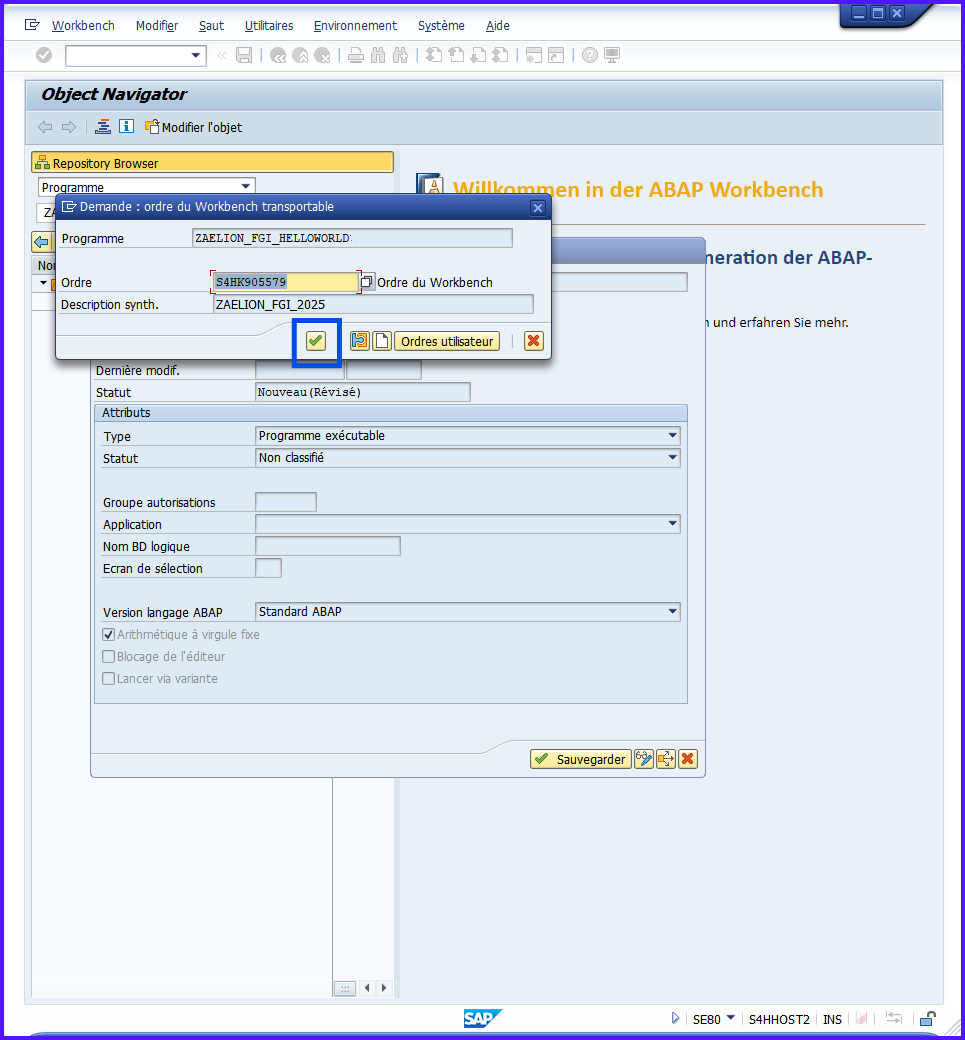

6. Associate PACKAGE and TO





7. Validate

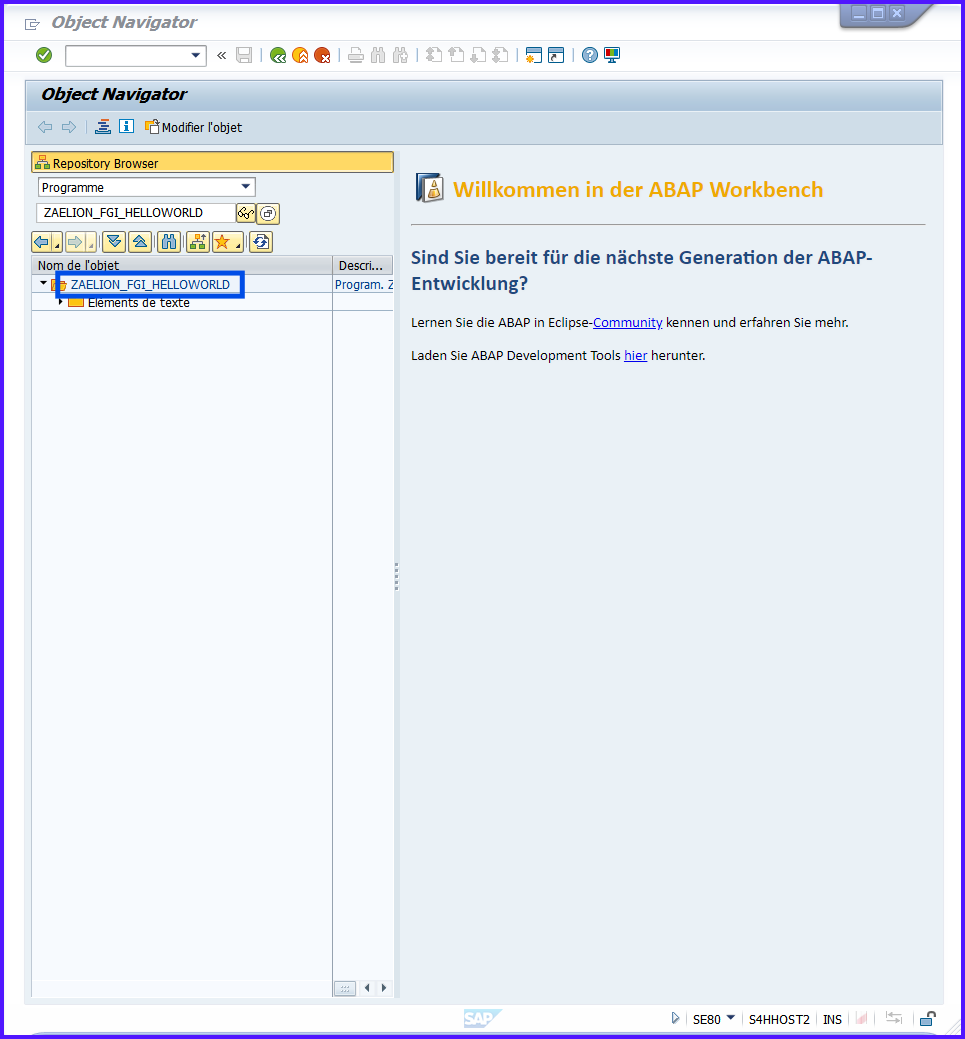

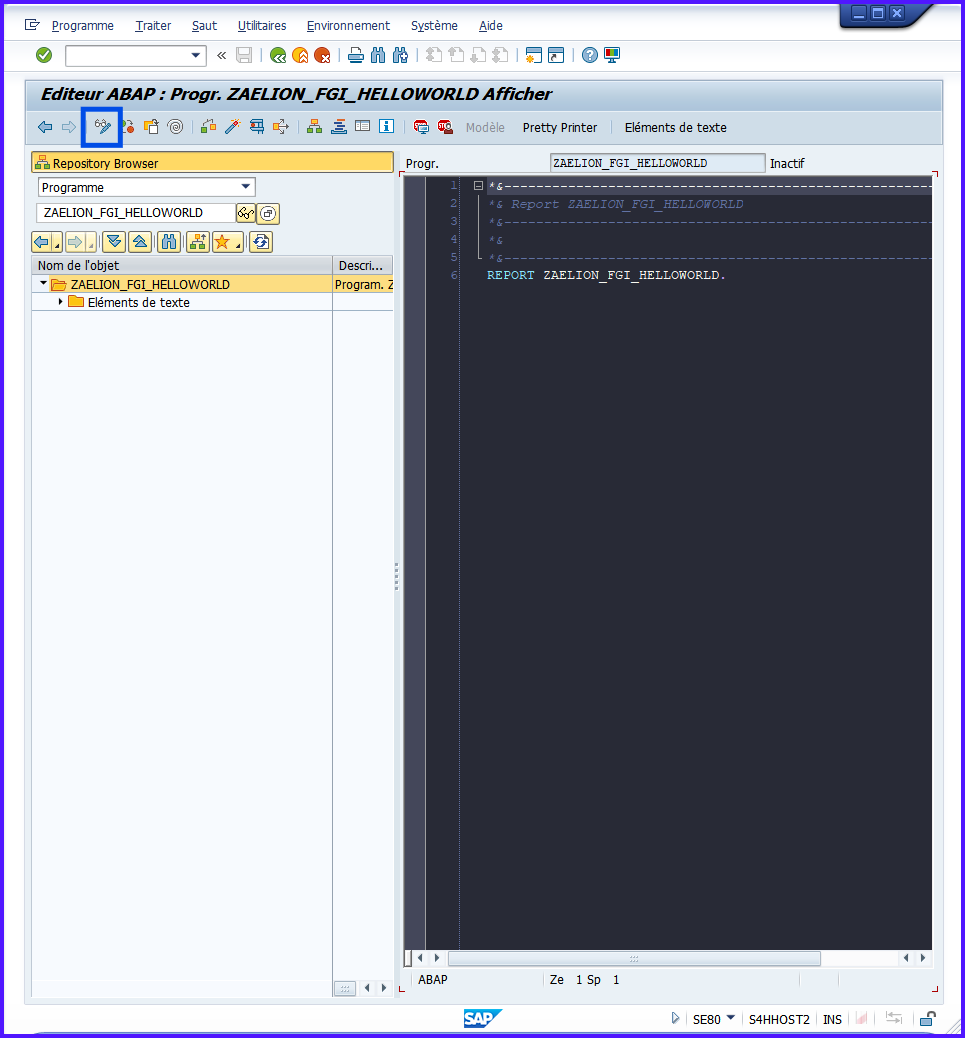

8. Open the PROGRAM (double click)





9. Switch to Edit mode (Ctrl+F1)





SE80 offers tree visualization: PROGRAM → Includes → Tables → Functions.

Creating a Program with SE38

#

1. Enter /nSE38
2. Enter the name of the PROGRAM (ex. ZAELION_TRI_HELLOWORLD)
3. Fill in Title
4. Select Executable Program
5. Save and choose PACKAGE (ex. ZAELION_2025_FGI)
6. Associate a TO and validate
7. Switch to Edit mode (Ctrl+F1)

Always follow the flow: Name Z/Y → PACKAGE → TO → Activate → Execute.

First Steps in the Program

#

Auto-generated PROGRAM:

*&---------------------------------------------------------------------*
*& Report ZAELION_TRI_HELLOWORLD
*&---------------------------------------------------------------------*
REPORT ZAELION_TRI_HELLOWORLD.

Add code:

WRITE: 'Hello world!'.

You should have:

*&---------------------------------------------------------------------*
*& Report ZAELION_TRI_HELLOWORLD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZAELION_TRI_HELLOWORLD.

WRITE: 'Hello world!'.

WRITE displays text on screen. This allows you to verify that the program works before adding complex processing.

Execution Steps

#

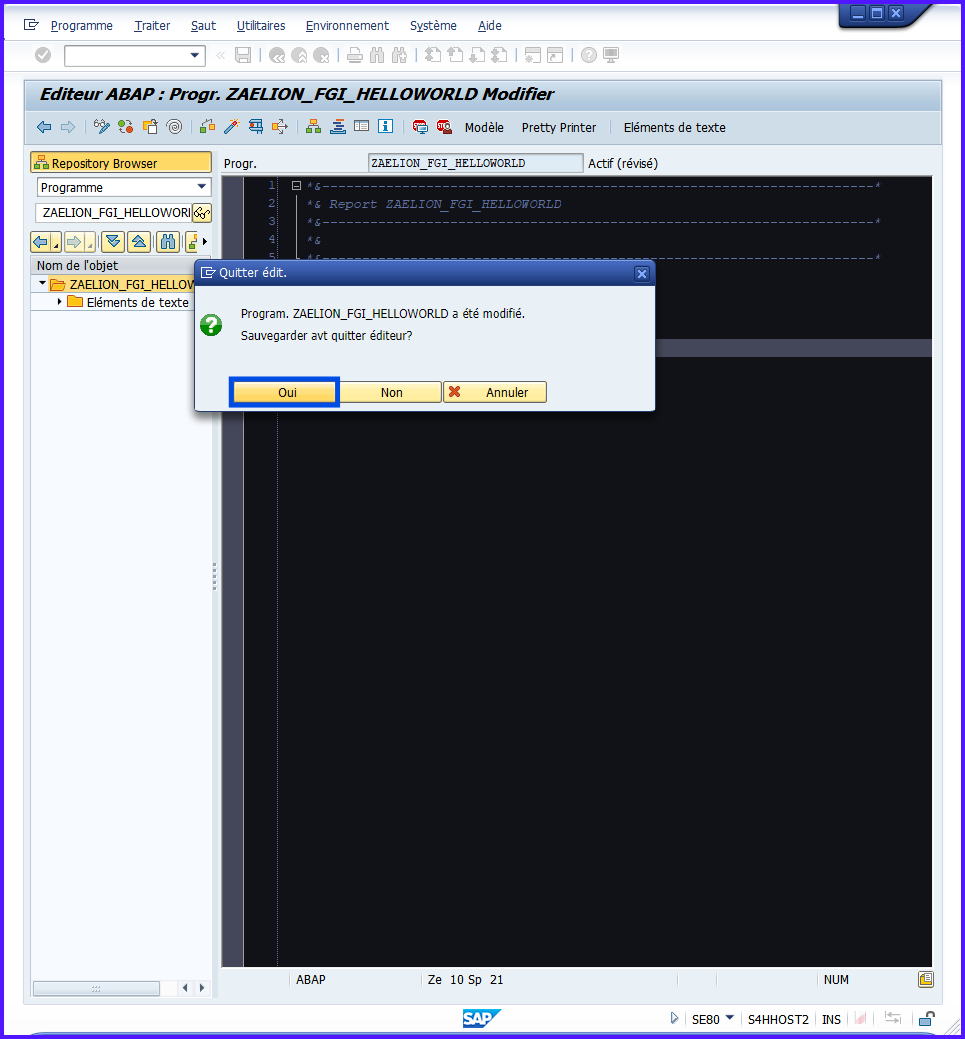

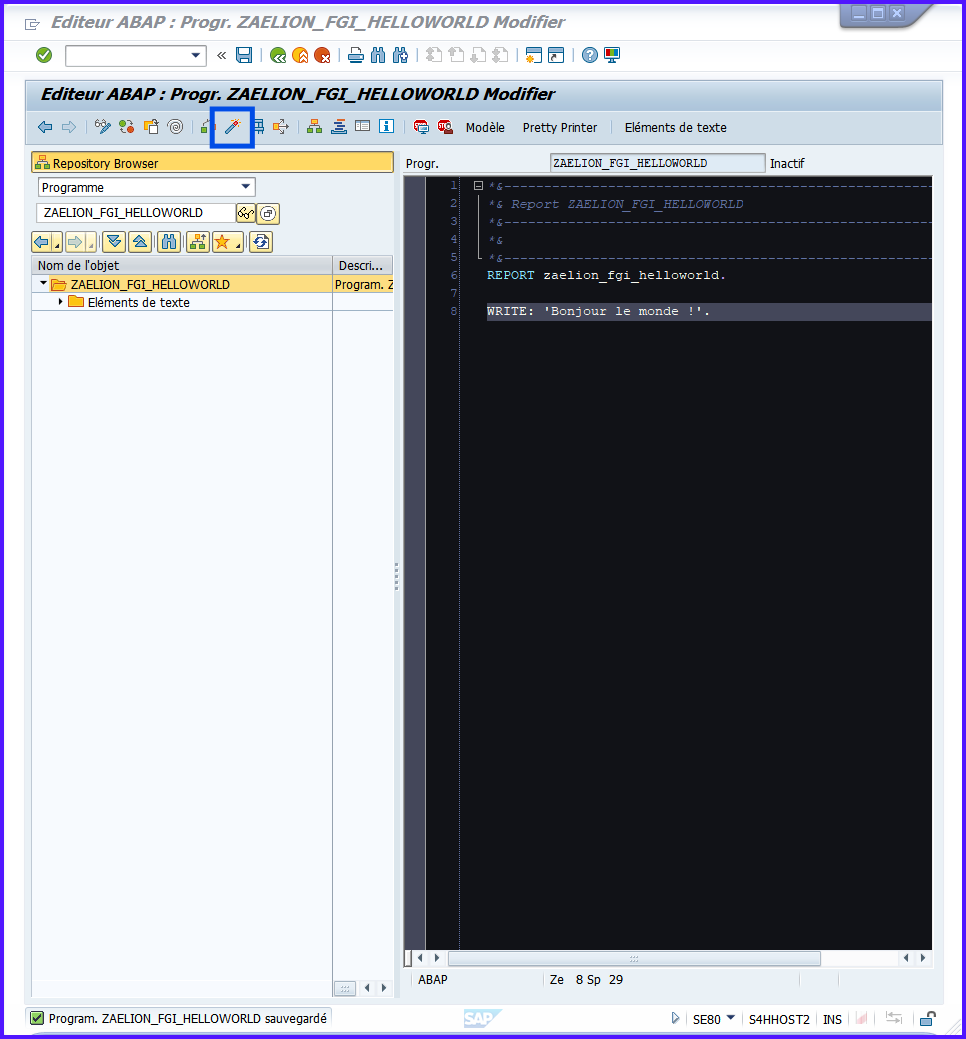

1. Save (Ctrl+S)

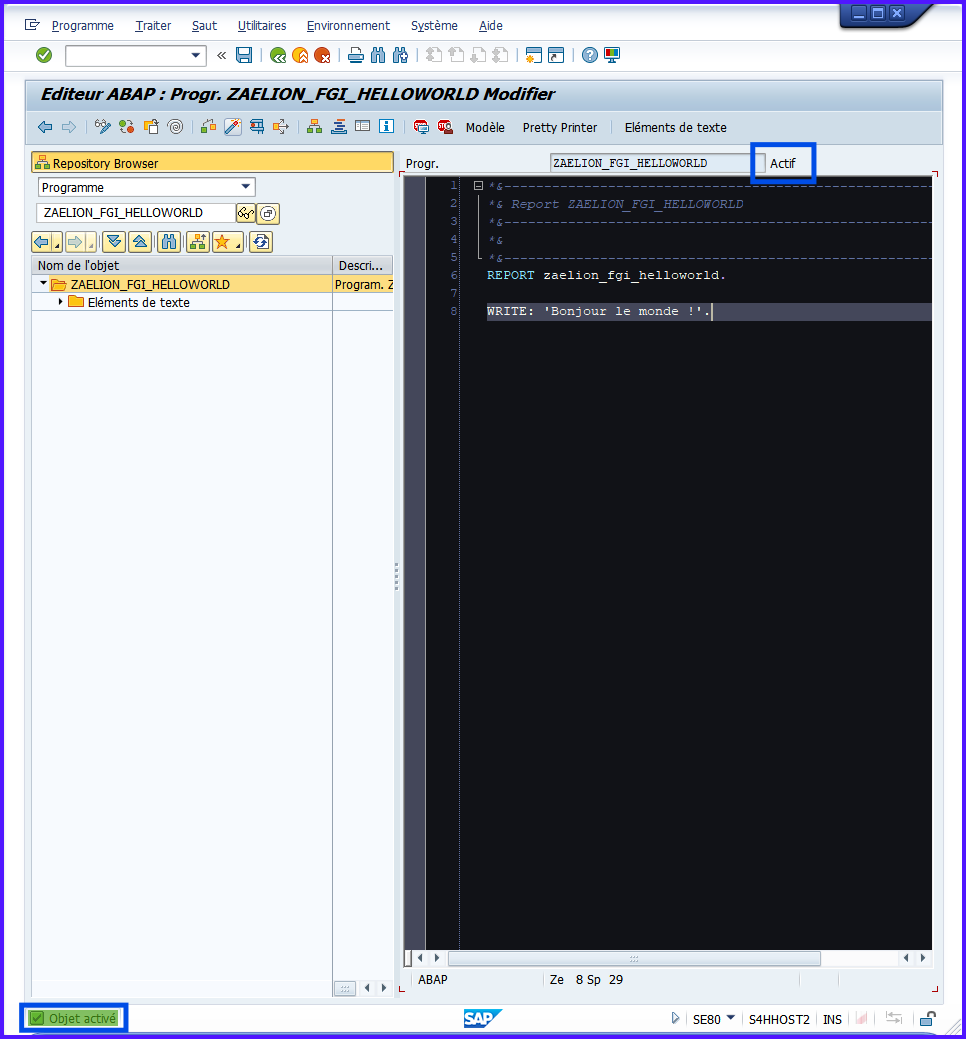

2. Activate (Ctrl+F3)

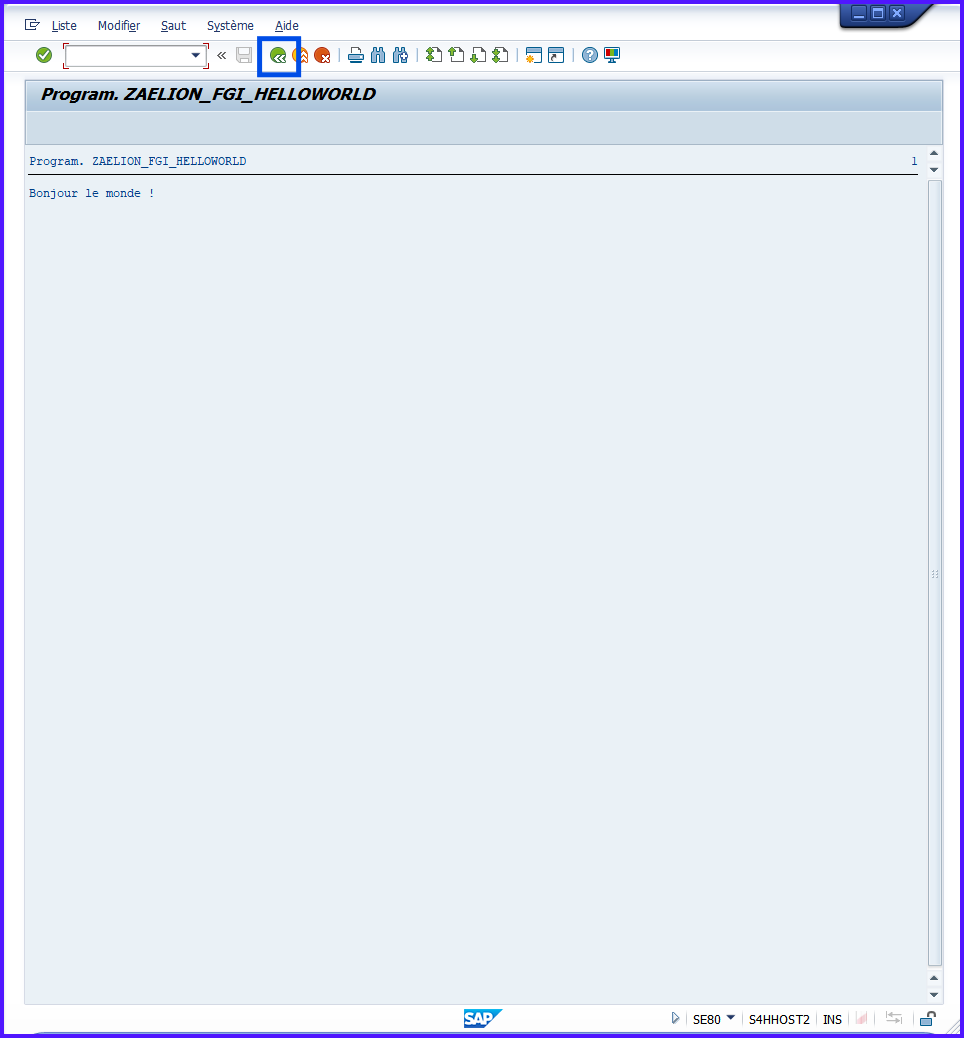

3. Execute (F8)





4. Back (F3)

Always follow the order: Save → Activate → Execute to avoid compilation errors.

Best Practices

#

Practical Exercise

#

1. Create a PROGRAM ZAELION_TRI_HELLOWORLD
2. Add a simple WRITE
3. Save, Activate, Execute
4. Verify the displayed message

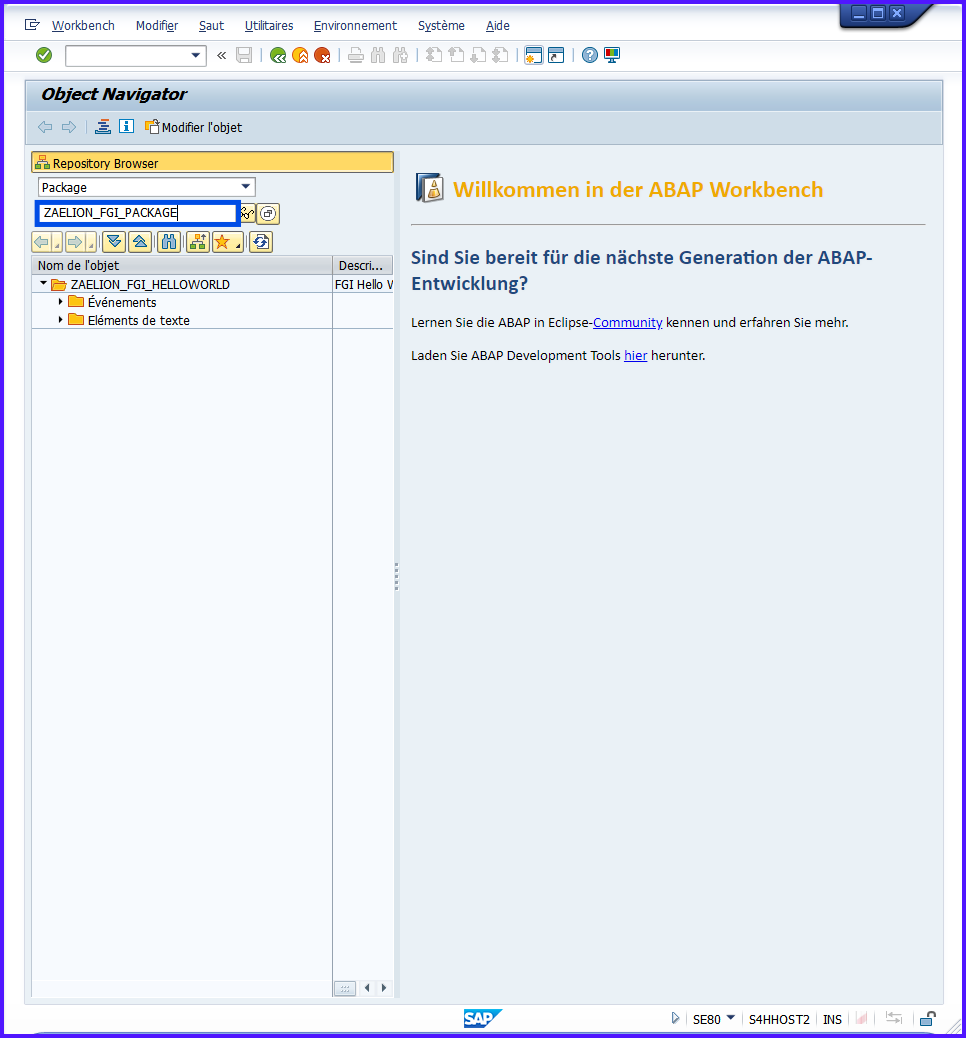

5. Observe the structure PACKAGE + TO in SE80

Summary

#

• An ABAP PROGRAM is a sequence of executable instructions
• Used to process data, display results, automate actions
• Types: Executable, Module pool, Include, Function group, Class pool
• Created via SE38 or SE80
• Must be saved in a PACKAGE and associated with a TO
• Execution: Save → Activate → Execute
• Start simple with WRITE to verify functionality

The PROGRAM is the recipe, the PACKAGE is the recipe filing cabinet, and the TO is the box to transport your recipes to other systems.

Creating an INCLUDE – SE38 / SE80

#

Objectives

#

• Understand the role of an INCLUDE in an ABAP program
• Create an INCLUDE via SE38 or SE80
• Know how to integrate it into a main program
• Organize your ABAP code for clarity and reuse

The goal is to modularize ABAP code to make it more readable, reusable and easy to maintain, while enabling collaborative work.

Definition

#

An INCLUDE is a reusable code file inserted into one or more ABAP programs. It allows you to separate code to make it more readable and modular.

An INCLUDE is like a chapter of a book: the main program is the complete book, and each INCLUDE is a chapter that can be written or reused elsewhere.

[!NOTE]

INCLUDEs cannot be executed alone. They must be integrated into a main program.

Why Use INCLUDEs?

#

Always think “one INCLUDE = one specific role” (top, screen, logic) to avoid confusion.

Types of INCLUDEs

#

The type is not imposed by SAP, it’s a convention for structuring your ABAP program.

Creating an INCLUDE via SE80

#

Starting PROGRAM:

*&---------------------------------------------------------------------*
*& Report ZAELION_TRI_HELLOWORLD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZAELION_TRI_HELLOWORLD.

WRITE: 'Hello world!'.

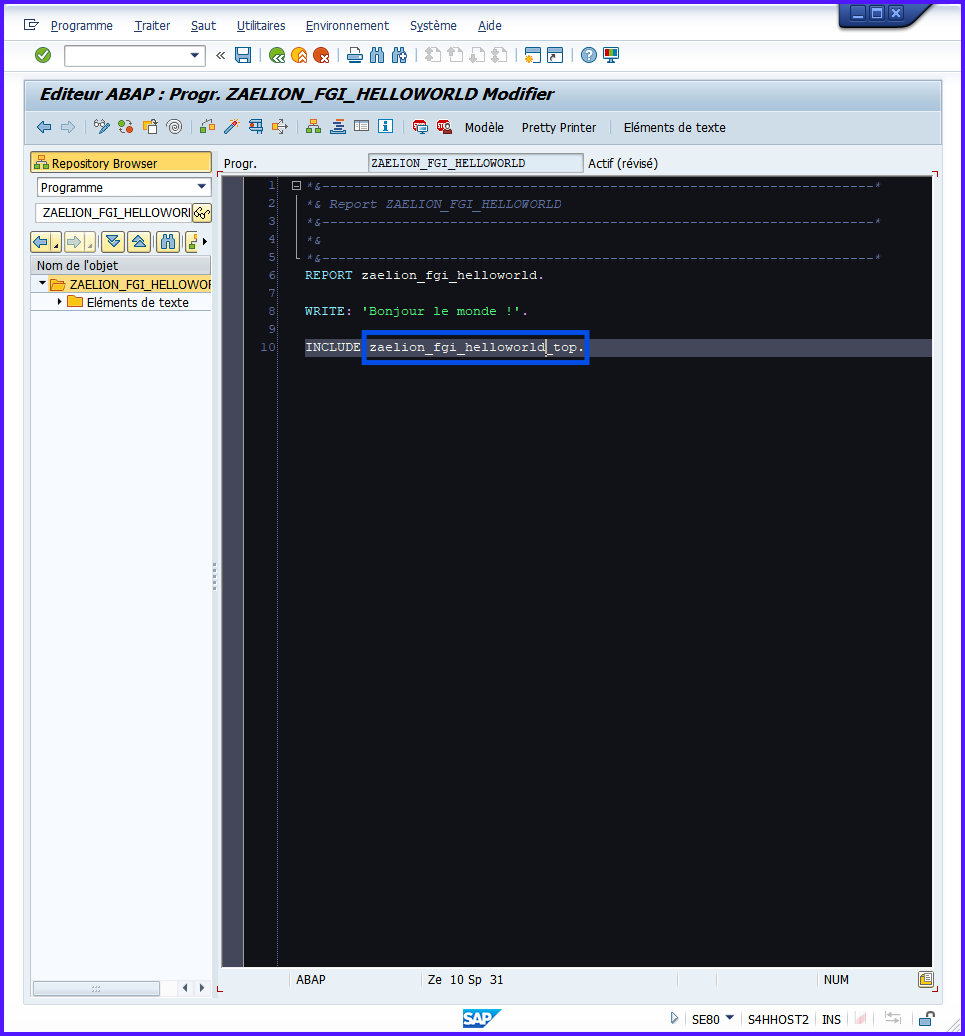

1. Add in the program:

INCLUDE ZAELION_TRI_HELLOWORLD_TOP.

You should have:

*&---------------------------------------------------------------------*
*& Report ZAELION_FGI_HELLOWORLD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZAELION_TRI_HELLOWORLD.

WRITE: 'Hello world!'.

INCLUDE ZAELION_TRI_HELLOWORLD_TOP.

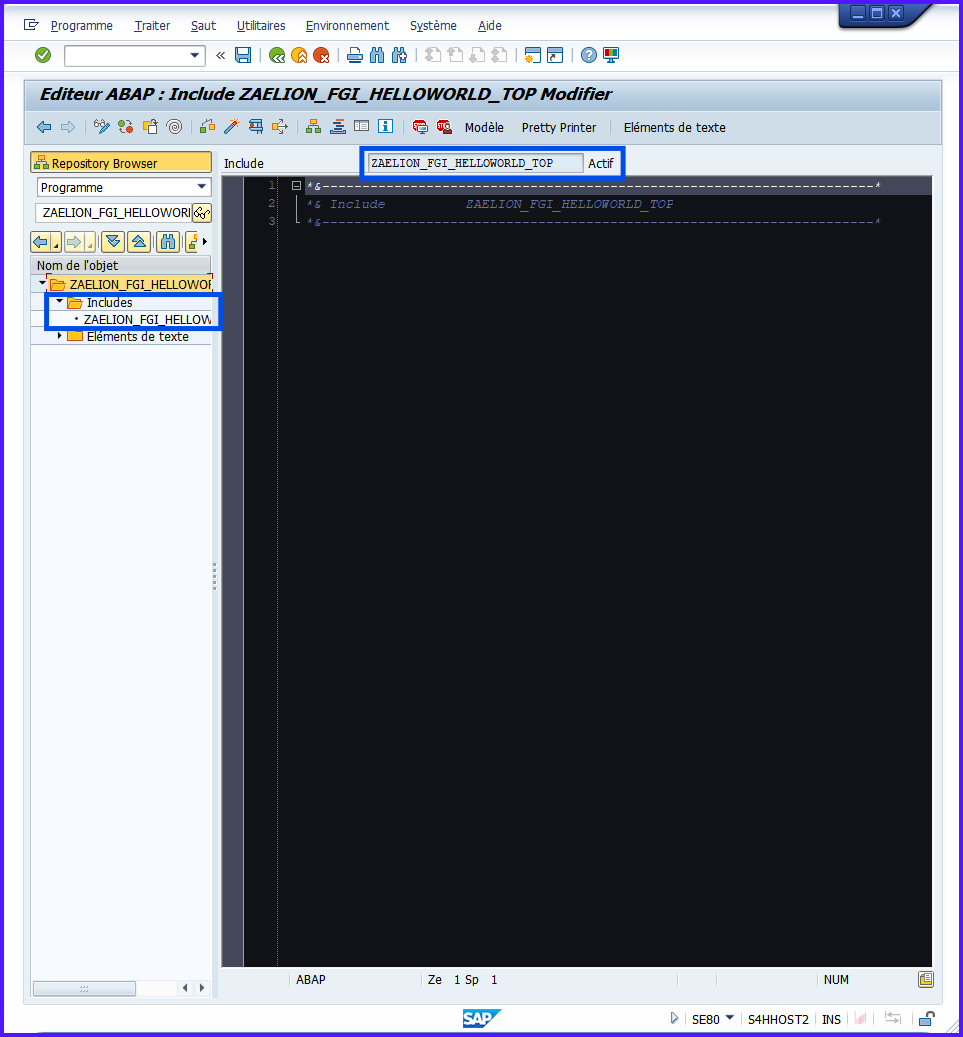

2. Double-click on the INCLUDE name → creation popup → validate → save if requested

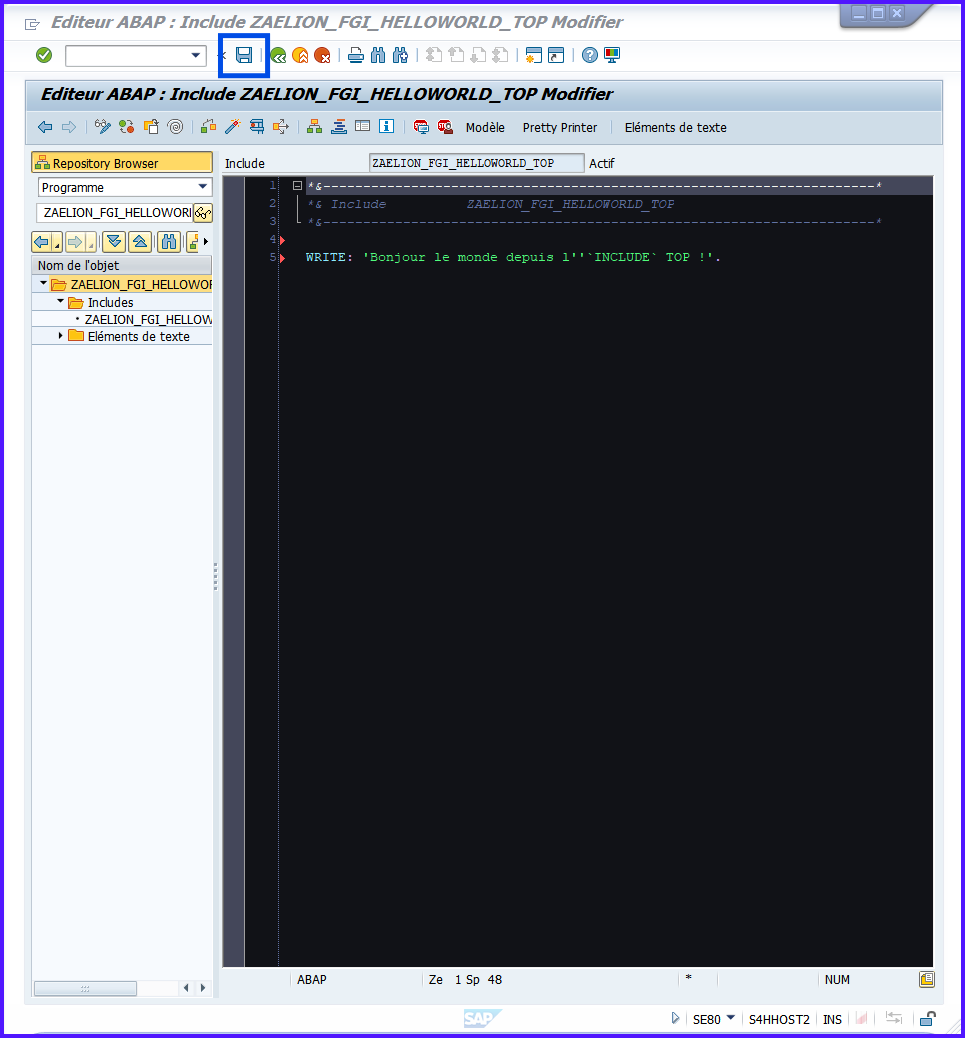

3. Add a WRITE to test:

WRITE: 'Hello world from the INCLUDE TOP!'.

You should have:

*&---------------------------------------------------------------------*
*& Include          ZAELION_FGI_HELLOWORLD_TOP
*&---------------------------------------------------------------------*

WRITE: 'Hello world from the INCLUDE TOP!'.

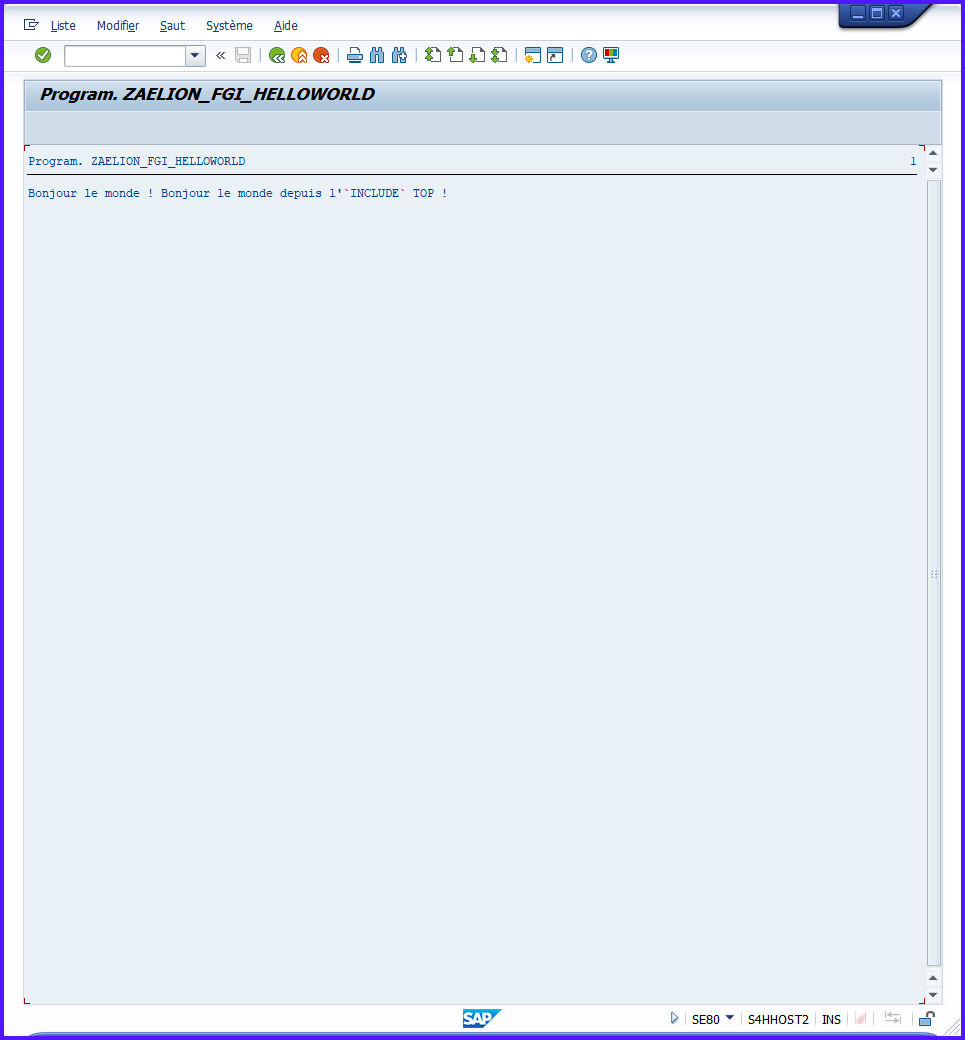

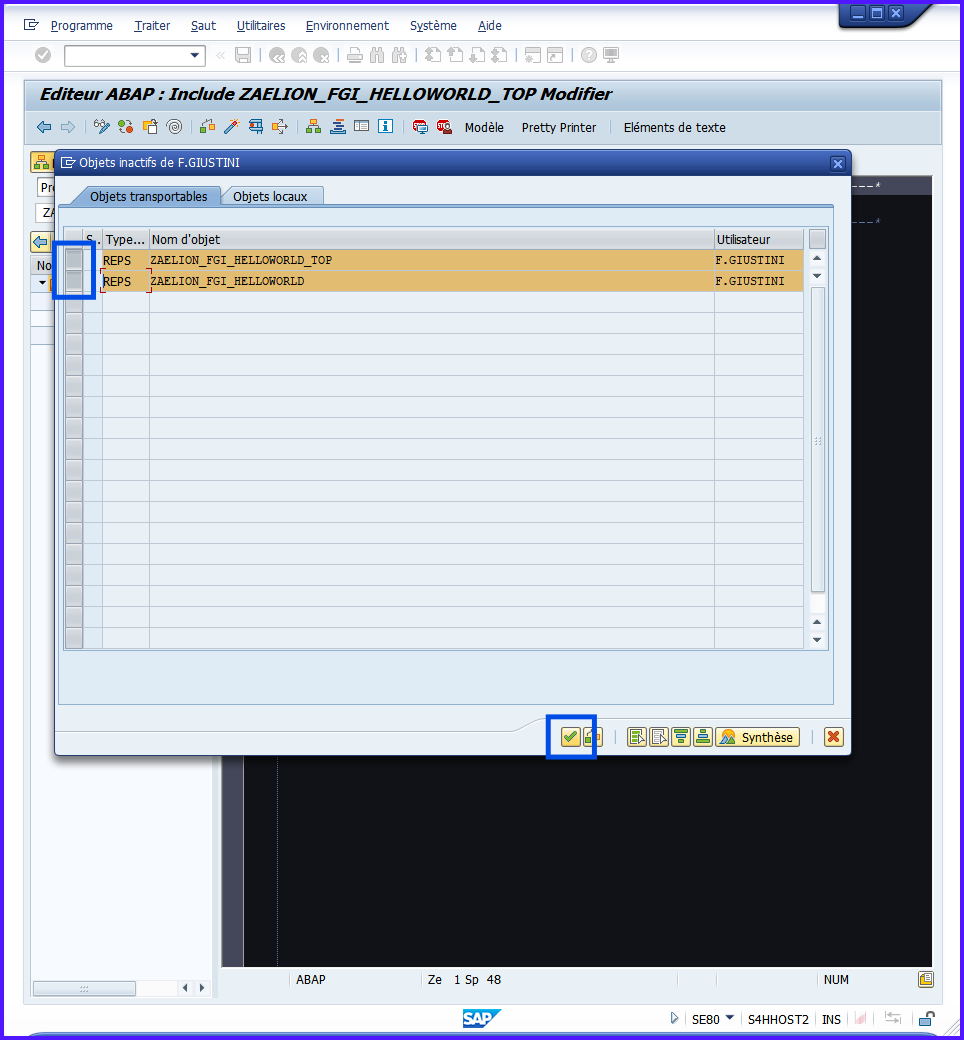

4. Save, Activate objects, Execute main program to see result











Always verify integration: a non-activated INCLUDE prevents proper execution of the main program.

Best Practices

#

Practical Exercise

#

1. Modify WRITE (add / after WRITE:)

WRITE:/ 'Hello world!'.

2. Create INCLUDE ZAELION_TRI_HELLOWORLD_TOP

INCLUDE ZAELION_TRI_HELLOWORLD_TOP.

3. Add WRITE in INCLUDE:

WRITE:/ 'Hello world from the INCLUDE TOP!'.

4. Save, Activate objects
5. Execute main program and verify display
6. Do the same with INCLUDEs ZAELION_TRI_HELLOWORLD_SCR and ZAELION_TRI_HELLOWORLD_F01

SOLUTION

---

REPORT ZAELION_TRI_HELLOWORLD

*&---------------------------------------------------------------------*
*& Report ZAELION_TRI_HELLOWORLD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZAELION_TRI_HELLOWORLD.

WRITE:/ 'Hello world!'.

INCLUDE ZAELION_TRI_HELLOWORLD_TOP.
INCLUDE ZAELION_TRI_HELLOWORLD_SCR.
INCLUDE ZAELION_TRI_HELLOWORLD_F01.

INCLUDE ZAELION_TRI_HELLOWORLD_TOP

*&---------------------------------------------------------------------*
*& Include          ZAELION_FGI_HELLOWORLD_TOP
*&---------------------------------------------------------------------*

WRITE:/ 'Hello world from the INCLUDE TOP!'.

INCLUDE ZAELION_TRI_HELLOWORLD_SCR

*&---------------------------------------------------------------------*
*& Include          ZAELION_TRI_HELLOWORLD_SCR
*&---------------------------------------------------------------------*

WRITE:/ 'Hello world from the INCLUDE SCR!'.

INCLUDE ZAELION_TRI_HELLOWORLD_F01

*&---------------------------------------------------------------------*
*& Include          ZAELION_TRI_HELLOWORLD_F01
*&---------------------------------------------------------------------*

WRITE:/ 'Hello world from the INCLUDE F01!'.

Exécution :

Summary

#

• An INCLUDE contains code reusable in one or more programs
• Created via SE38 or SE80 and integrated into program with INCLUDE
• Makes code clearer, modular and easier to maintain
• Must be saved in a PACKAGE and associated with a TO

Each INCLUDE is a chapter of the book that constitutes your program. You can modify it, reuse it and transport it without touching the rest of the book.

Managing Dumps and Debugger – ST22

#

Objectives

#

• Understand what a DUMP is in SAP
• Know how to analyze a DUMP via transaction ST22
• Discover ABAP debugger and learn how to use it
• Identify difference between debugging via /H and BREAKPOINTS

The goal is to learn how to diagnose ABAP errors and follow code execution to fix anomalies.

Definition

#

A DUMP (or ABAP Runtime Error) is a fatal error that stops an ABAP program to protect the system. SAP then records a detailed report in ST22 for analysis.

It’s like a blue screen on a computer, but SAP provides all information needed to understand and fix the problem.

Common DUMP Examples

#

DUMPs are often caused by unexpected values or code errors. Reading them carefully allows finding the exact source.

Analyzing a DUMP with ST22

#

1. Enter /nST22

2. Choose period (“Today” or filter by user/program)



3. Click on DUMP to analyze



4. Examine key sections:





Double-click on line in Source Code Extract opens SE38 directly at faulty line.

Using the ABAP DEBUGGER

#

The debugger allows executing code line by line, inspecting/modifying variables and understanding program behavior.

Debugging a Transaction – /H

#

1. Enter /H in command bar → Debugging switched on
2. Execute transaction to analyze
3. SAP automatically opens debugger before execution

Activate /H before clicking or validating a form to observe complete flow.

Debugging a Program – SE38 / SE80

#

1. Open program via SE38 or SE80

2. Add breakpoint on line (click in margin → red dot)



3. Save and execute program (F8)





Variables can be modified directly in debugger to test scenarios.

Best Practices

#

Practical Exercise

#

1. Intentionally generate simple DUMP (ex. DIVISION BY ZERO)

*&---------------------------------------------------------------------*
*& Report ZAELION_FGI_HELLOWORLD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zaelion_fgi_helloworld.

WRITE:/ 'Hello world!'.

INCLUDE zaelion_fgi_helloworld_top.
INCLUDE zaelion_fgi_helloworld_scr.
INCLUDE zaelion_fgi_helloworld_f01.

*&---------------------------------------------------------------------*
*& DUMP
*&---------------------------------------------------------------------*

DATA: lv_num TYPE i,
      lv_den TYPE i,
      lv_res TYPE i.

lv_num = 10.
lv_den = 0.

lv_res = lv_num / lv_den.

WRITE: / 'Result:', lv_res.

2. Execute
3. Analyze DUMP in ST22
4. Add breakpoint in program, execute and observe variables

Summary

#

• A DUMP is a fatal ABAP error that stops program and generates report in ST22
• ST22 allows analyzing: message, faulty code, variables, call stack
• ABAP Debugger: execute line by line, inspect/modify variables
• Access: /H for transactions, breakpoint for programs
• Key functions: F5 (next), F6 (skip), F8 (continue), dynamic breakpoints

[!IMPORTANT]

ST22 = incident log, debugger = microscope to follow line by line what program does.
